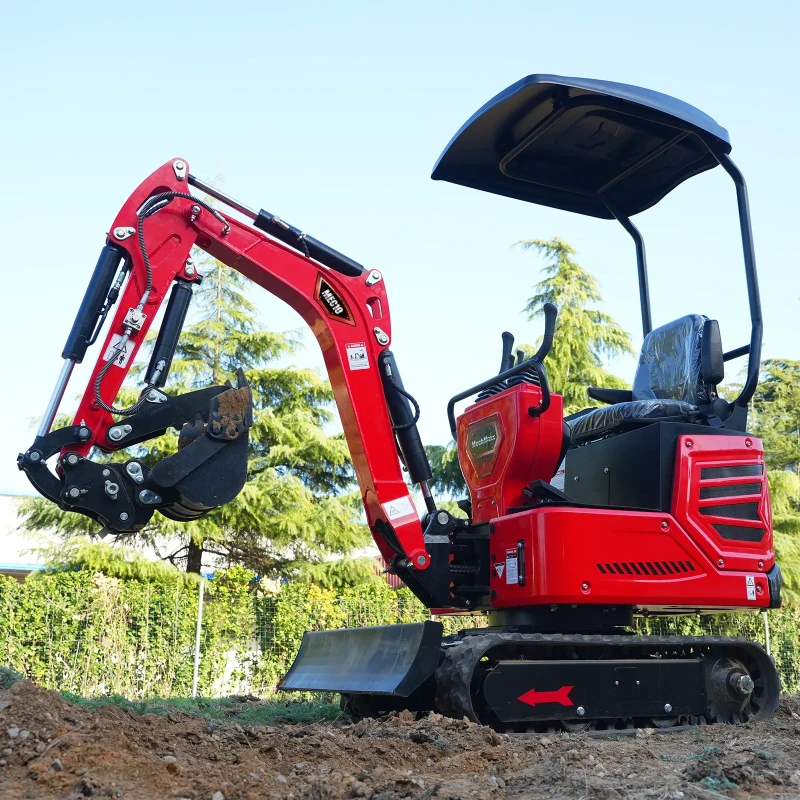

The Mini Compact Excavator HONDA GX390 Engine, 65.7″ Max. Digging Depth, 2280 LBS Operating Weight, MEC10 — fits through gates, digs 65.7″ deep, and replaces a crew of shovels.
Trustpilot 5/5 · 44 reviews| Standard Bucket Capacity | 0.7 cu-ft | Auxiliary Std Flow | 5.7 gal/min |
| Standard Bucket Width | 15 in | Max. Tractive Force | 3035 lbf |
| Max. Travel Speed | 0.75 mile/h | Arm Digging Force | 1191 lbf |
| Slewing Speed | 11 rpm | Bucket Digging Force | 1619 lbf |
| Max. Gradeability | 30° | Rated Lift Capacity | 728 lb |
| Track Ground Pressure | 5.1 psi | Lift Radius | 80 in |
| Hydraulic Oil Tank Capacity | 3.96 gal | Operating Weight | 2280 lb |
| Operating Range | |||
| Max.Digging Radius On Ground | 119 in | Max. Vertical Digging Depth | 63.3 in |
| Max. Digging Depth | 65.7 in | Min. Turning Radius | 46.8 in |
| Overall Operating Height (Fully Raised) | 111.8 in | Max. Lifting Height Dozer Blade | 5.9 in |
| Max. Digging Radius | 121 in | Max. Depth Dozer Blade | 7.4 in |
| Max. Unloading Height | 81.8 in | ||
| Main Dimensions | |||
| Wheel Track | 35.8 in | Track Height | 12.6 in |
| Track Length | 48.6 in | Transportation Length | 92.5/113 in |
| Upper Chassis Ground Clearance | 15.7 in | Height Of Seat To Ground | 61.4 in |
| Counterweight Turning Radius | 32.6 in | Overall Height | 89.3 in |
| Chassis Width | 36 in | Boom Swing-Right | 40° |
| Track Width | 7 in | Boom Swing-Left | 53° |
| Engine | |||
| Model | Honda GX390 | Max. Net Torque | 26.5 N.m/2500 RPM |
| Displacement | 389 cc; 11.7 HP | Fuel Tank Capacity | 1.6 gal |
| Engine Type | 4-stroke, overhead valve, single cylinder | Engine Oil Capacity | 0.3 gal |
| Start Type | Electric start | Engine Oil Type | 10W-30 |
| Rated Power | 8.7 KW/3600 RPM | Warranty | 1 Year |
| Package | |||

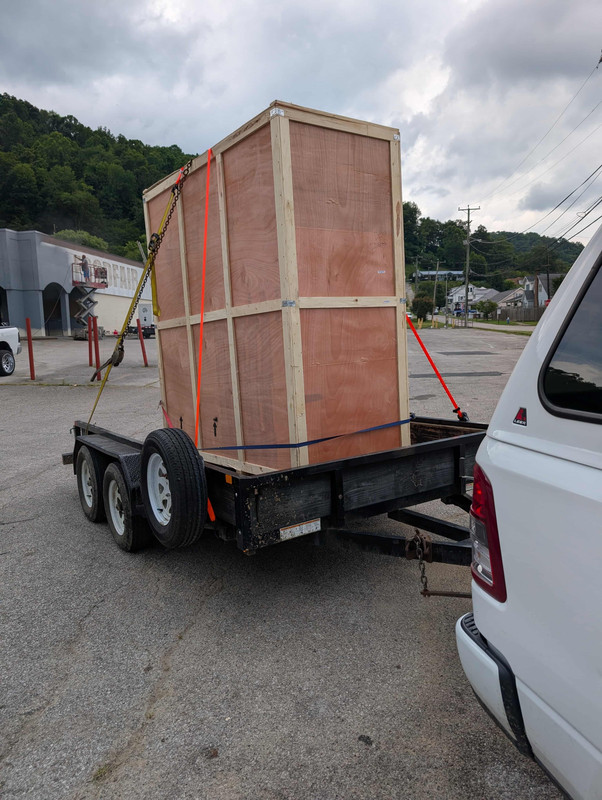

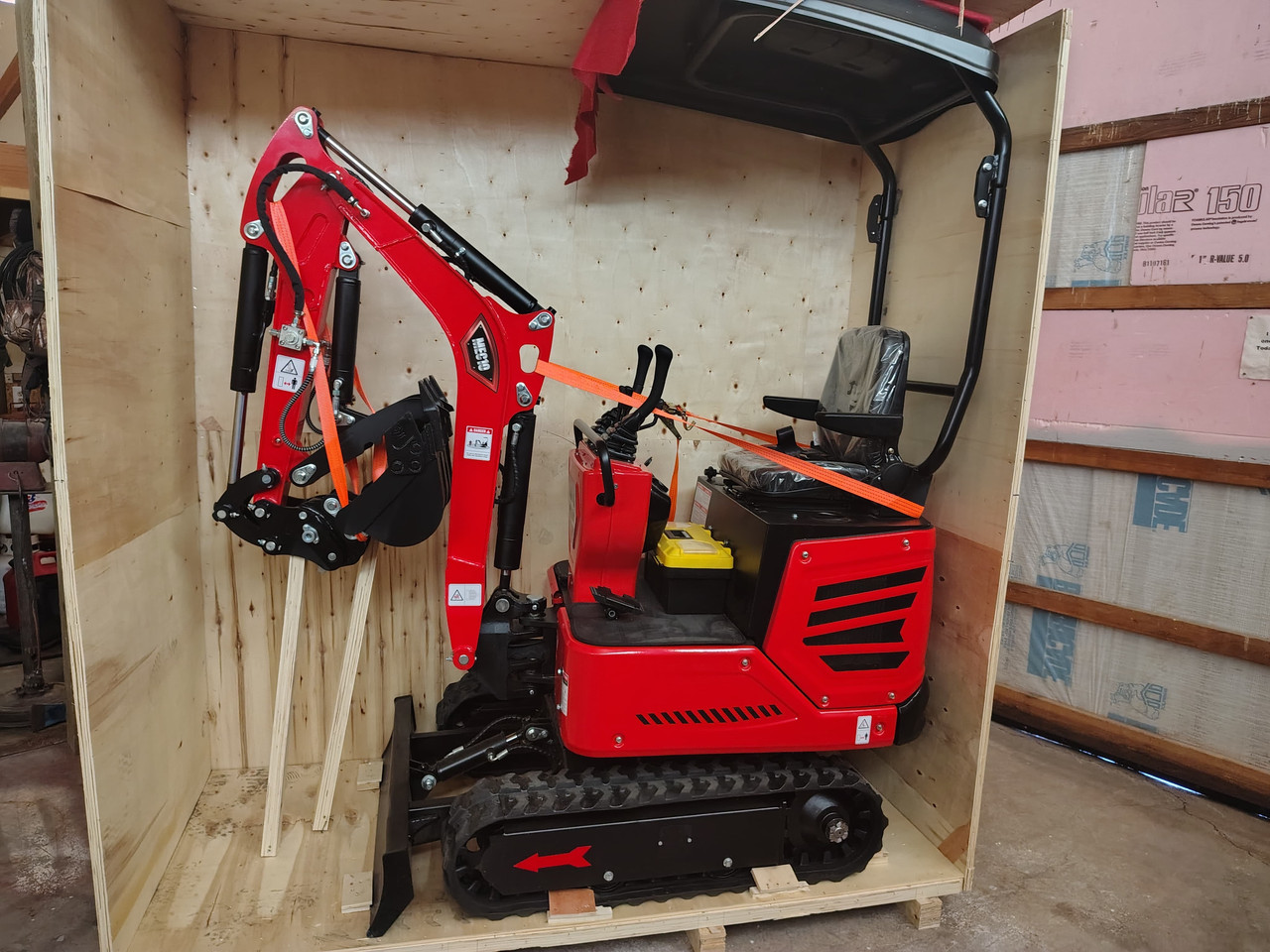

| Package Method | Plywood Case | Weight (N.W./G.W.) | 2100/2376 lb |
| Dimensions | 91x40x98 in |
This mini excavator was a great investment hands down. Never operated an excavator before and only took me a few hours to get the hang of it. I have a total of 15 hours on the machine so far and haven’t had any issues. Just make sure to grease the fittings every now and then. The best thing is that it has Honda engine in it so you know it’s going to last forever. I would absolutely recommend this machine to anyone on the fence. It's well built, easy to operate, and a fraction of the cost of the name brands. Best investment I've made for my property.

The mini excavator has been great! My Dad was needing something that could do the lifting for him. Also, he needed something so he wouldn’t need to use a shovel. This has worked great! We have used it to take out 4 cedar trees. We dig up the roots and took out the trees. The thumb allowed us to load the trailer without having to pick up the tree and limbs by hand, which saved my Dad's back completely. It's been the perfect machine for him, easy to operate and powerful enough for everything we've thrown at it. Couldn't be happier with this purchase.

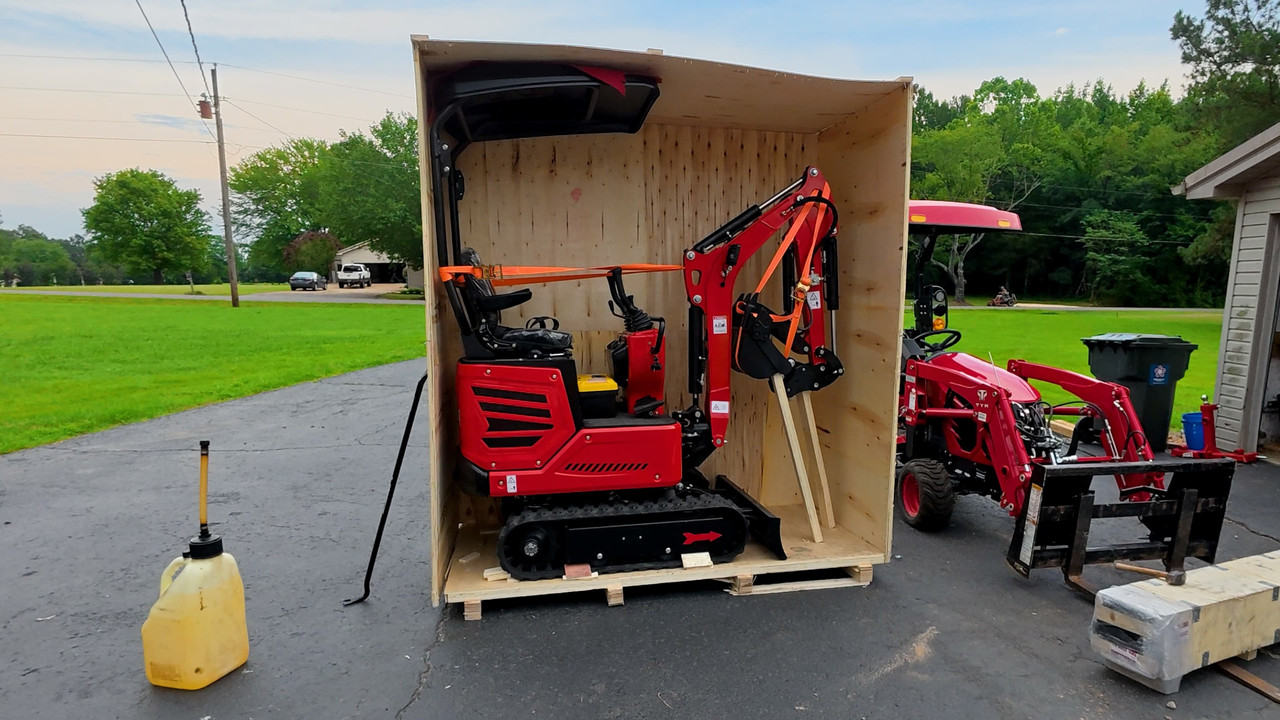

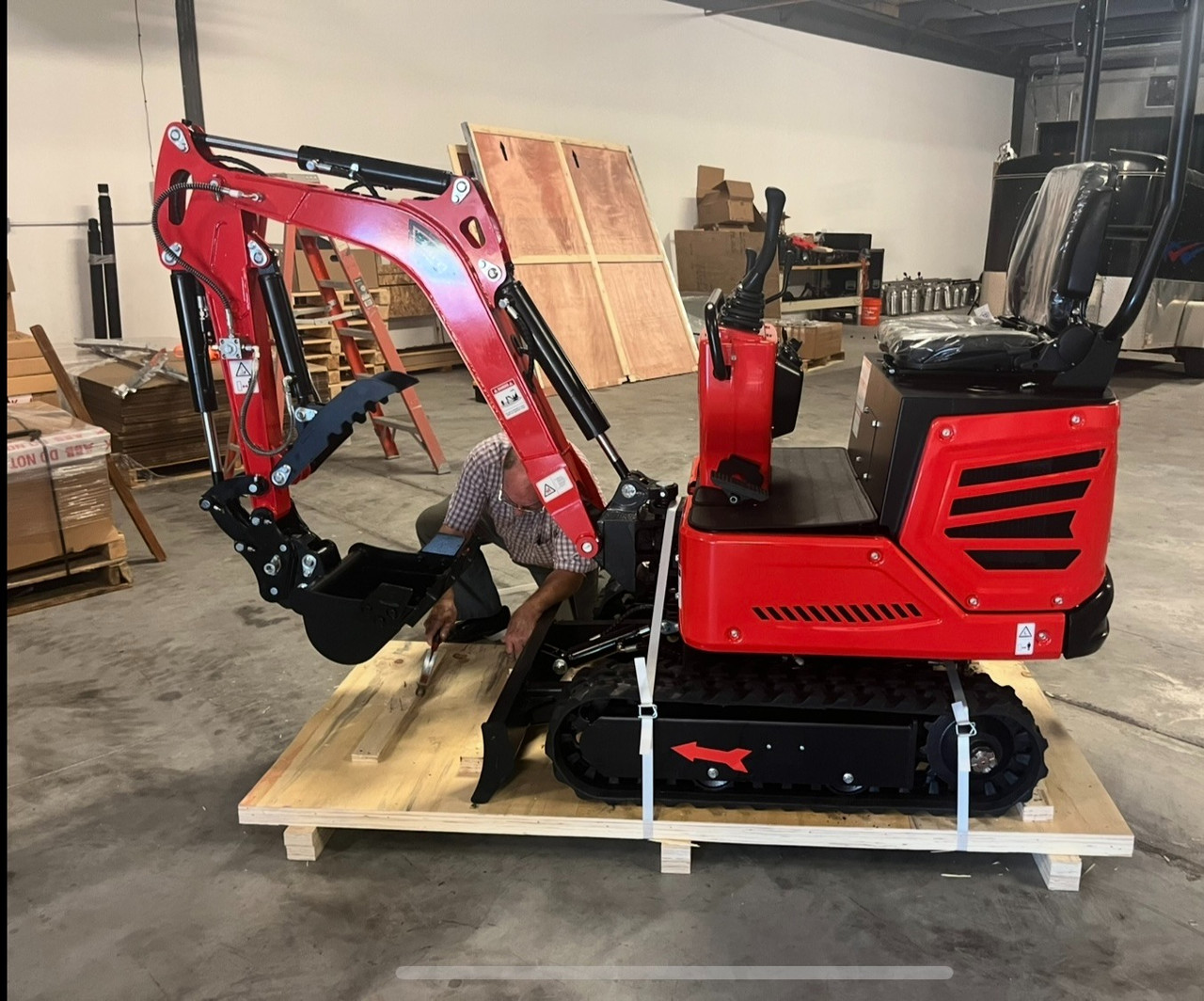

The Mech Max Mini Excavator showed up well‑packaged and fully assembled, which made things super easy. It’s solidly built, feels durable, and handles yard projects without a problem. Easy to use, fits into tight spots, and saves a ton of time compared to doing it by hand. Honestly, it’s worth the money and a smart alternative to the higher‑priced options out there.



I looked at a lot of mini excavators before settling on the MEC10. I am very happy with the fit and finish and quality of the machine , I bought the auger attachment with it witch works awesome also the 4 piece attachment set - After getting it uncrated it was as simple as putting the choke on , turning the key, and it fired right up. Everything worked exactly as it should straight out of the crate. The auger and the 4 piece attachment set are great additions and the build quality throughout is excellent. Very happy I went with the MEC10.




My son has a small homestead that needs cleaning up and done light construction work. After researching mini excavators, we decided on this one do to features, reliable engine, and price. The delivery carrier dropped the ball causing a delay, but MechTech was beyond helpful in rectifying the situation. The unit is in site, and performing flawlessly. Simply put, this little excavator has been worth every penny. It handles the homestead cleanup and light construction work with ease, the engine is reliable, and the price simply can't be beat. Despite the delivery hiccup, MechMaxx made everything right and I couldn't be happier with the machine.

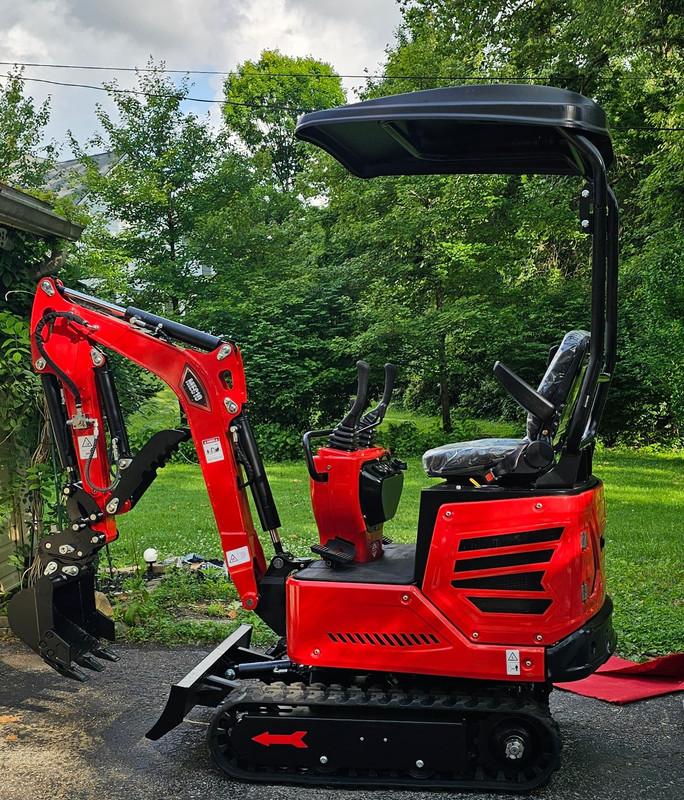

My mini excavator was ready to start up and go right out of the box. I am very surprised how strong it actually is. I ordered the 4 piece attachment set thinking I would need the ripper to break through the layer of clay but was able to go right through it with the bucket it came with. It is a very well built machine and worth every penny.

This is a follow-up on the MEC10 after 20 hours of heavy use. To this point, it has outperformed my expectations by far. Pros: Fast hydraulics for digging, strong pushing with the dozer blade, everything works, it is cheaper than a tractor backhoe, and it is well-built. Cons: It tracks at 1.5mph, the metal around the seat base gets hot to the touch, and the canopy is too low for a taller operator. None of those are deal-breakers though. For the price, this machine flat out outperforms anything in its class, and after 20 hours of heavy use it hasn't let me down once. Highly recommended.


Extremely happy with this purchase. It took less than a week for shipping, and I picked it up from the transportation warehouse. They kept me updated during this time. After I've been using it for about a month now, I found that the excavator is very well balanced and solid in the one-ton category. It has a solid cast iron counter weight in the back to keep the machine planted and stable even on uneven ground. Digging is smooth and confident with no tipping. For a one-ton excavator at this price, the quality and balance are outstanding. Extremely happy with this purchase.



Extremely happy with this purchase. It took less than a week for shipping, and I picked it up from the transportation warehouse. They kept me updated during this time. After I've been using it for about a month now, I found that the excavator is very well balanced and solid in the one-ton category. It has a solid cast iron counter weight in the back to keep the machine planted and stable even on uneven ground. Digging is smooth and confident with no tipping. For a one-ton excavator at this price, the quality and balance are outstanding. Extremely happy with this purchase.

Very happy with the purchase of my Met Max 10 upon receiving it. I was very well pleased the minute I opened the box I can tell that it was high-quality and I like the rest of those other Chinese mini excavators if you’re looking for a 1 ton excavator, Max has far exceeded your expectations better than a ripper better than AGT hands-down this is your one time buy, you won't need anything else. Top quality right out of the box and worth every penny. Couldn't be happier with it.

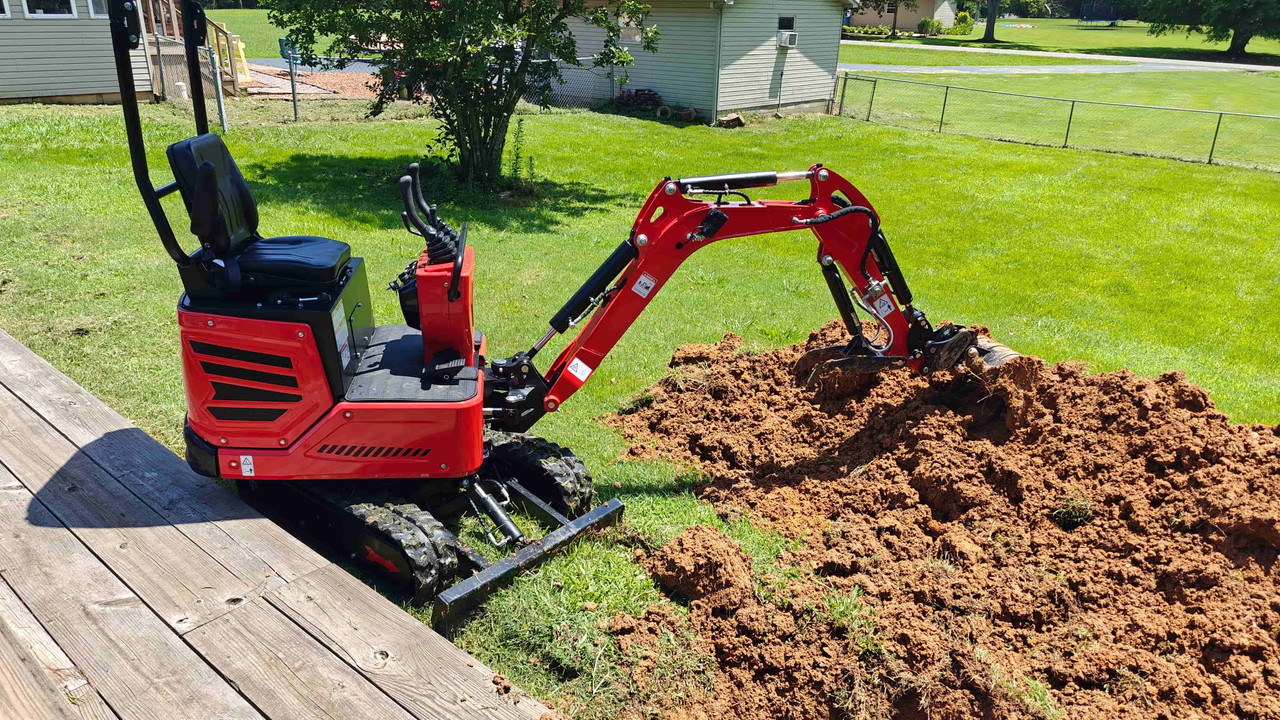

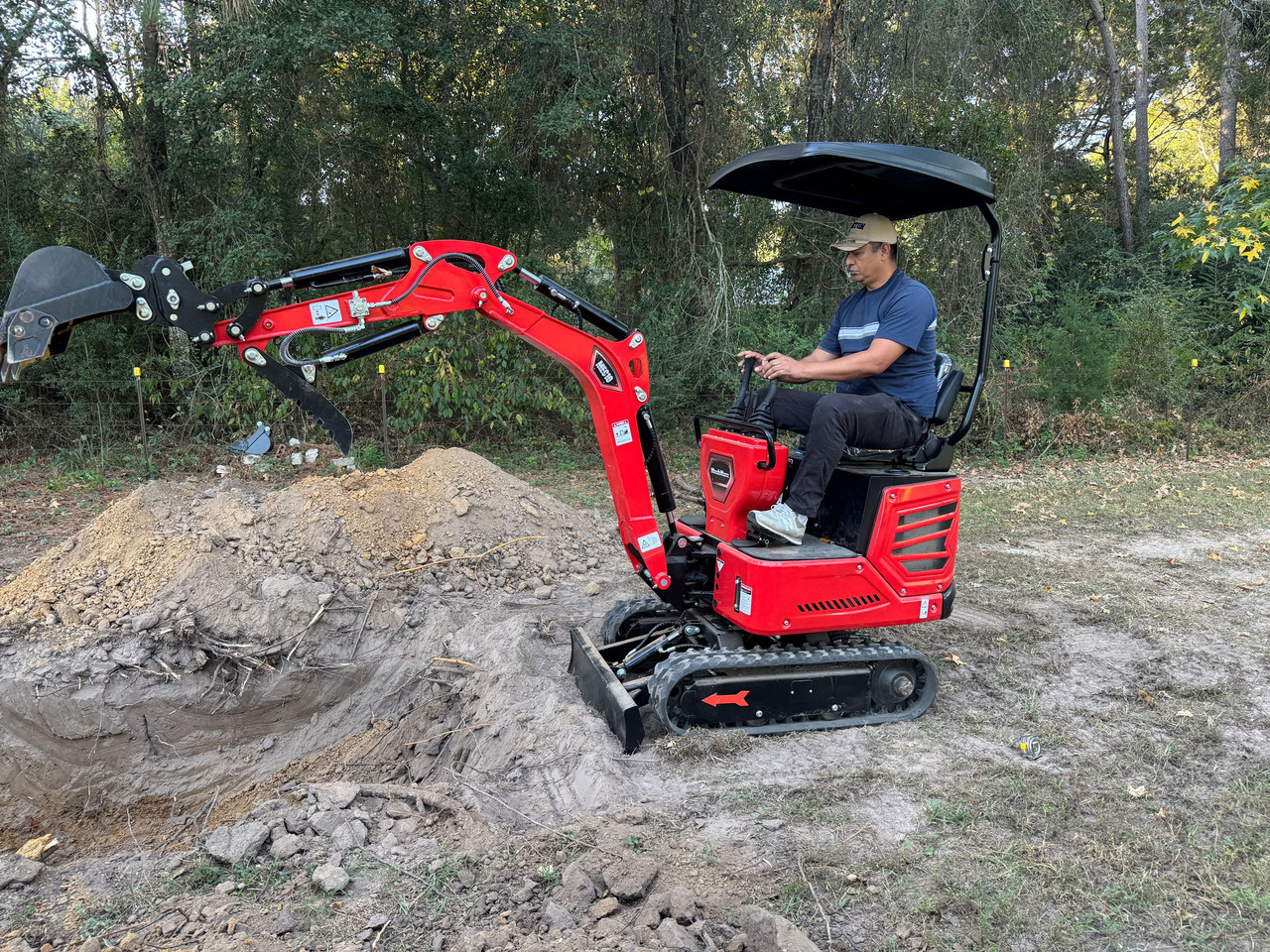

After trying to did a hole for an underground water line on my property by hand and a pallet of Ibuprofen later I decided to purchase this awesome little machine to save my back. It showed fairly quickly and in perfect condition. I have already used it to dig a trench to bury an underground Ethernet cable and to smooth out some rough spots in my driveway. This little machine has already paid for itself in the work it's saved my back. It runs strong, sips fuel, and handles everything I ask of it. Worth every penny, I only wish I'd bought one sooner.



The Mechmaxx Mech10 is one awesome little machine. After trying to dig a hole by hand for a water line I had leaking on my property and a pallet of Ibuprofen, I decided to buy this little machine. It arrived in excellent condition and has done everything I have asked it to do so far. I have already dug a trench to bury an underground Ethernet cable and used it to smooth out some rough spots in my driveway. It has done everything I've asked of it and then some. Easily one of the best purchases I've made for my property, strong, reliable, and a huge back-saver. Highly recommend.

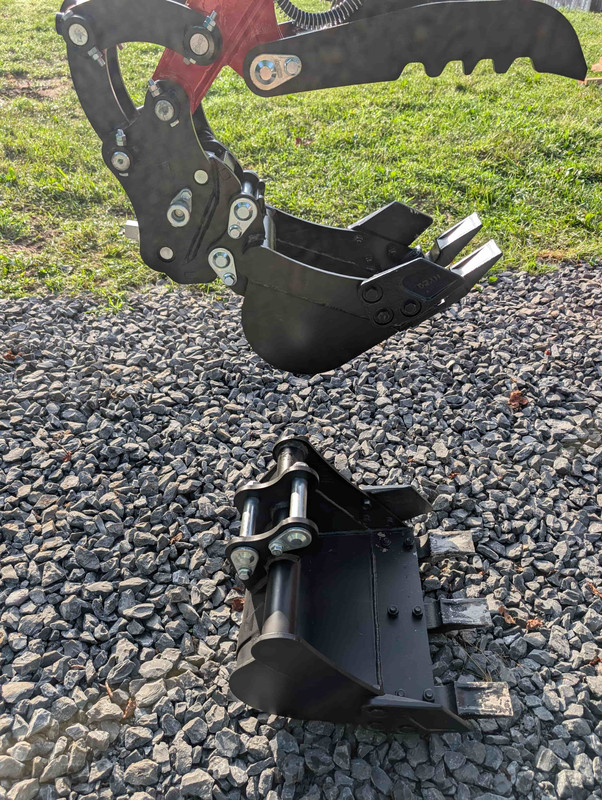

Very happy with this purchase. I have put more than 20 hours on it in 3 days. Seems like a very well machine and well thought out. I also got the 4 attachment pack that are very heavy with thick metal. The quick attachment hitch is fantastic. Can change them out in seconds! It has quickly became my useful tool. Mechmaxx exceeded my expectations and will be my first call for any future equipment needs. The machine is well built, the attachments are heavy duty, and the quick hitch is a game-changer. Couldn't be happier with this purchase.




I recently had the pleasure of bringing home the MECHMAXX MEC-10 mini excavator, and it has truly exceeded my expectations! This little powerhouse fits easily through a standard four-foot gate, making it perfect for tight spaces and residential projects. The build quality is top-notch, and you can really tell that MECHMAXX put a lot of care into the design and build of this machine. It's powerful, easy to maneuver, and perfect for tight residential spaces. From the fit and finish to the performance, it has exceeded my expectations in every way. Highly recommended.


Excellent machine for tight urban jobsites. Compact design lets you work in confined areas without sacrificing power. Digging, trenching, and grading are effortless. Controls are responsive and maintenance is straightforward. Great fuel economy too! It’s the perfect combination of performance and convenience. Would definitely recommend it to fellow contractors.

we like it.
Was awesome

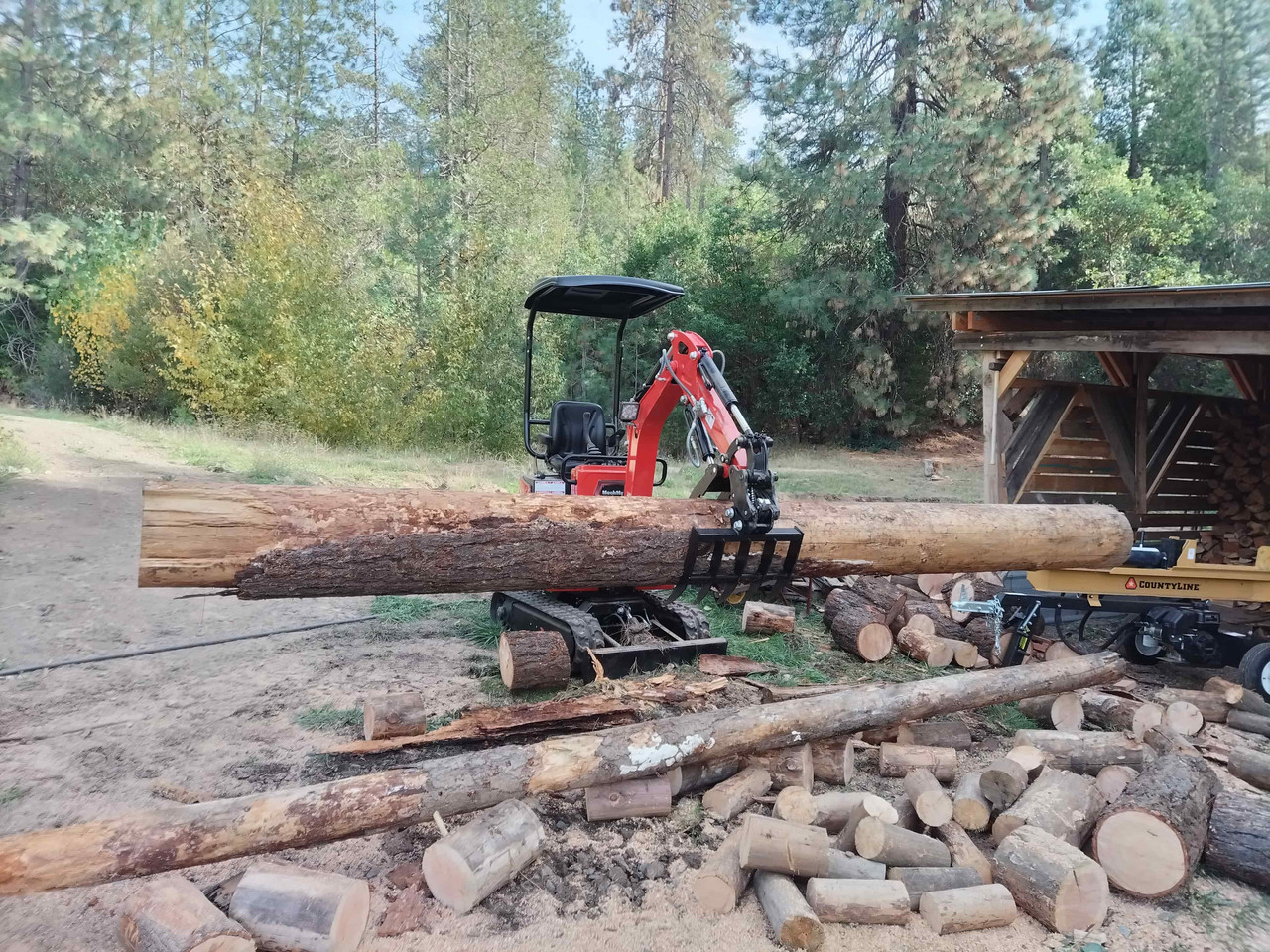

Love it a great tool for loading wood on my mill
Very satisfied
In follow up to my previous review. The weather has cleared so I was able to get some seat time on our recently acquired Mech max MEC10 mini excavator yesterday. I used it to fix water damage to some of our gravel roads on our property. The MEC10 did exceptionally well with no issues. It stood up to the task of moving and leveling gravel all day without a hiccup. The hydraulics are smooth, the dozer blade made quick work of the repairs, and the Honda engine never missed a beat. Very impressed with how much this little machine can handle. Five stars.
Item was received in great condition. Looked it over, serviced engine oil and fuel. It started right up. Look forward to using it soon to fix some water damage to our roads as soon as the rain lets up.
Just as described

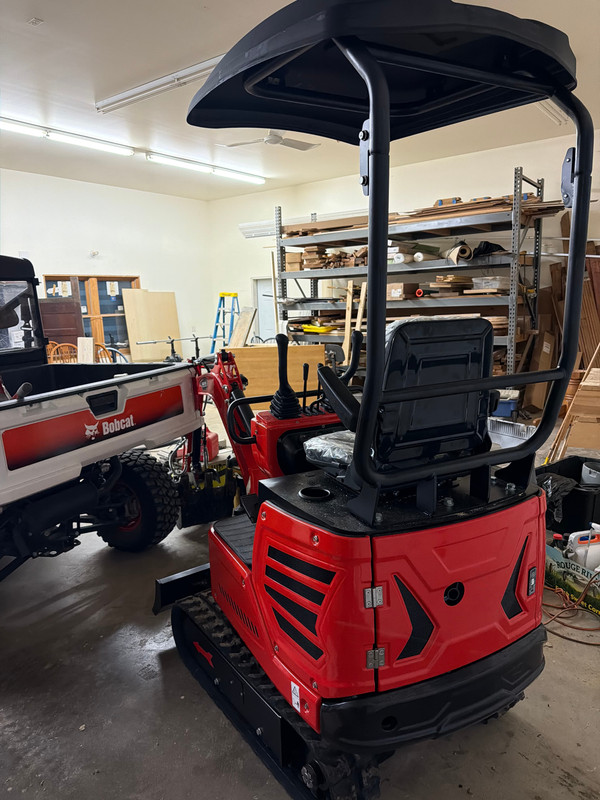

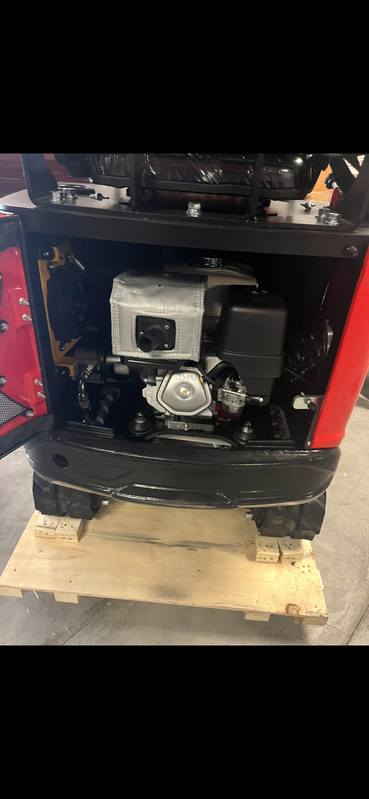

Efficient, quiet Honda power! Just add motor oil and gas, set the choke and start it up. Overall quality parts, good welds, greased fittings… shipped “tight and right” The canopy is metal, the hydraulic power is more than I expected from a “micro-excavator”. This and a compact tractor is the perfect combo for larger home properties and small farm use. This machine has exceeded every expectation I had going in, quiet, capable, and built far better than the price suggests. I'd buy it again in a heartbeat.
First off, I love my MEC10. I had to wait 7 weeks to get it. It is very well put together, I am surprised by the heavy stamped metal roof. I have 35 hours on it, so I have learned a lot. The “no oil in engine” tag was left in my engine compartment and may have caught fire if I did not fine it before using. I had a small hydraulic leak from the blade ram but I tightened the fitting and it hasn't leaked a drop since. Little things like that are easy fixes and don't take away from what an excellent machine this is. For the hours I've put on it, the MEC10 has more than proven itself. Love it.

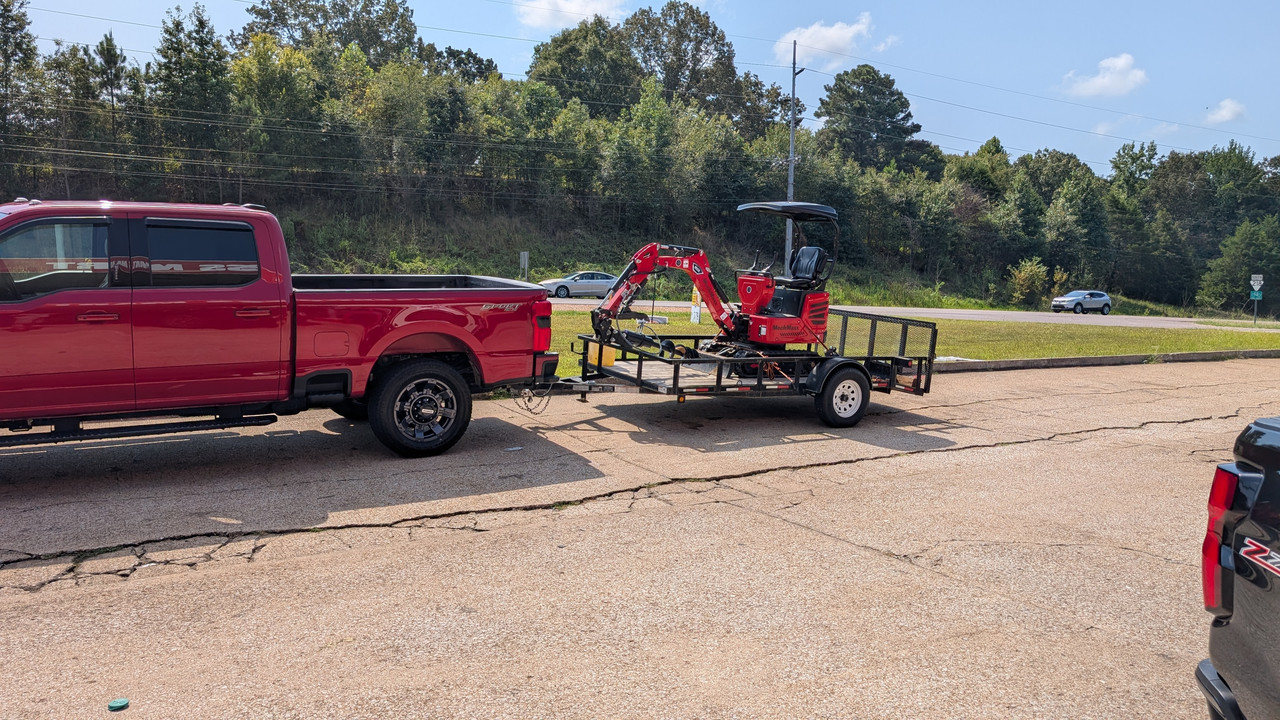

We received the Mini Excavator on time. Delivery was a small challenge in that the unit, as they disclose on website was too heavy for conventional liftgate delivery. ABF freight put the unit Ina flat bed with a skid steer and delivery was smooth. We added engine oil and Honda started immediately. We changed hydraulic fluid out of caution but think it was probably fine from the factory. The machine started right up and has run flawlessly since. Delivery was the only wrinkle and they're upfront about it on their website. Very pleased with the MEC10, solid, capable, and a great value.
Smooth operation, tough for the size, and I like how the boom cylinder is positioned behind the boom instead of in front like other excavators.... it's protected much better. Overall great quality! And great pricing!
Purchased two season ago and no issues aside from scant sun exposure, overhead safety pan a little small. All seals are exceptional, zero leaks, no engine rattle - very consistent Honda runner; visibly over engineered welds and tracks; controls are extremely responsive and precise, I can flip a brick onto its short side and then push it into the soft dirt. Not what I expected from a machine at this price, the precision and power rival units costing far more. Two seasons in and it still runs like the day I got it. An exceptional value and a genuinely well-built excavator.
Can’t say enough good things about this mini excavator. It’s rugged, reliable, and saves me tons of labor hours. Fits in small backyards, runs smoothly, and digs deep with no problem. It’s quiet, comfortable to operate, and surprisingly powerful. One of the best purchases I’ve made for my landscaping business.
Mini Compact Excavator MEC12 makes hard jobs easy. Its agility, precision, and strength are unmatched for its size. It’s perfect for tight workspaces and light construction. If you want power and portability combined, this is the machine for you.
I’ve completed multiple backyard and foundation projects with it, and it handles each task with ease. It's lightweight, stable, and fits where larger equipment can't. Setup and maintenance are simple. It’s dependable and strong. Definitely the most versatile piece of equipment I own right now.
This Mini Compact Excavator delivers surprising power and smooth operation. Its small footprint is ideal for residential areas. Easy to control, low noise, and fuel-efficient. I’ve used it for digging trenches, removing stumps, and grading, never disappoints. Great investment.
Outstanding performance for such a small excavator. It handles everything from digging to lifting with ease. Great fuel economy and smooth hydraulics. Minimal maintenance required. It’s built tough and runs like a champ. Perfect tool for landscaping, utility work, and small-scale construction. I recommend it to anyone needing compact power.
I was skeptical at first, but this machine blew me away. It’s compact but doesn't compromise on power or control. Used it to dig a septic system and it worked flawlessly. It’s easy to tow and even easier to operate. Perfect for both weekend warriors and professional contractors.
It has become my go-to machine. It’s agile, durable, and surprisingly strong. It fits between buildings and in backyard gates, where larger equipment simply can’t go. Maintenance is simple and parts are easy to find. It’s a great choice for homeowners and pros alike. Highly recommend it.
Solid performance from such a compact unit. It’s maneuverable and digs cleanly with impressive speed. The bucket capacity is just right for small-scale construction. Loading, trenching, and leveling are stress-free. Transporting it is also easy. Great addition to our rental fleet.
Very impressed with how much work this mini excavator can handle. Great breakout force for its size. It’s ideal for backyard work, trenching, or foundation digging. Comfortable operator station and easy-to-learn controls make it enjoyable to use. It’s reliable, efficient, and surprisingly quiet. I’m glad I made the investment.
This compact excavator exceeded my expectations. Easy to operate even for a beginner. It’s stable, powerful, and fits in small areas where bigger machines can't go. Maintenance is minimal, and build quality is top-notch.
Absolutely love this machine! It’s small but mighty. I used it for drainage installation and landscaping, and it handled everything with ease. Quiet operation, intuitive controls, and excellent fuel efficiency. It’s become an essential tool for my projects. Can’t believe how much work I get done in less time.
Impressed with the smooth controls and precise digging. The compact size gets into tight spots without sacrificing performance. It’s durable, easy to transport, and starts up effortlessly every time. Great value for the money. Makes trenching, digging, and grading quick and painless. Will definitely purchase again for our business.
This mini excavator is a powerhouse in a small frame! Perfect for tight spaces, it made landscaping my backyard a breeze. It’s easy to maneuver, fuel-efficient, and surprisingly strong. A fantastic machine for small to mid-sized jobs. Highly recommend for contractors or DIYers needing reliable, compact muscle.

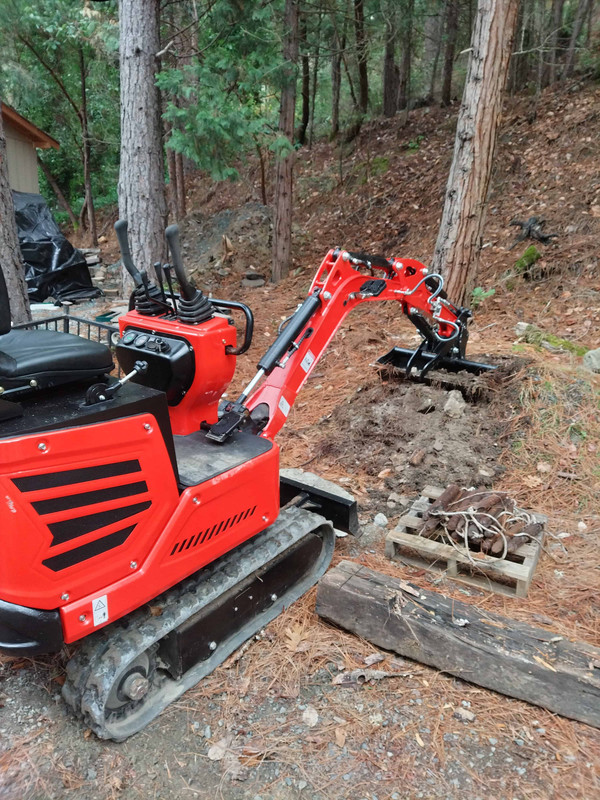

It can dig 4-5 feet down in rocky clay, it can dig sideways on hillsides, it excels at digging rough roads down hillsides or diagonally up, it is great for digging trenches along paths, kind of like it's intended use. It consumes very little fuel compared to the larger machines. All in all, this machine has become an essential part of my homestead.

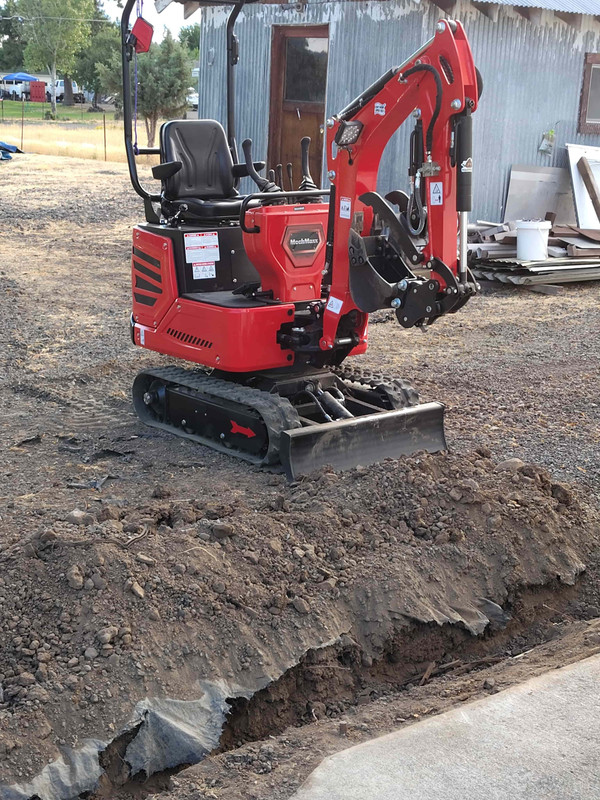

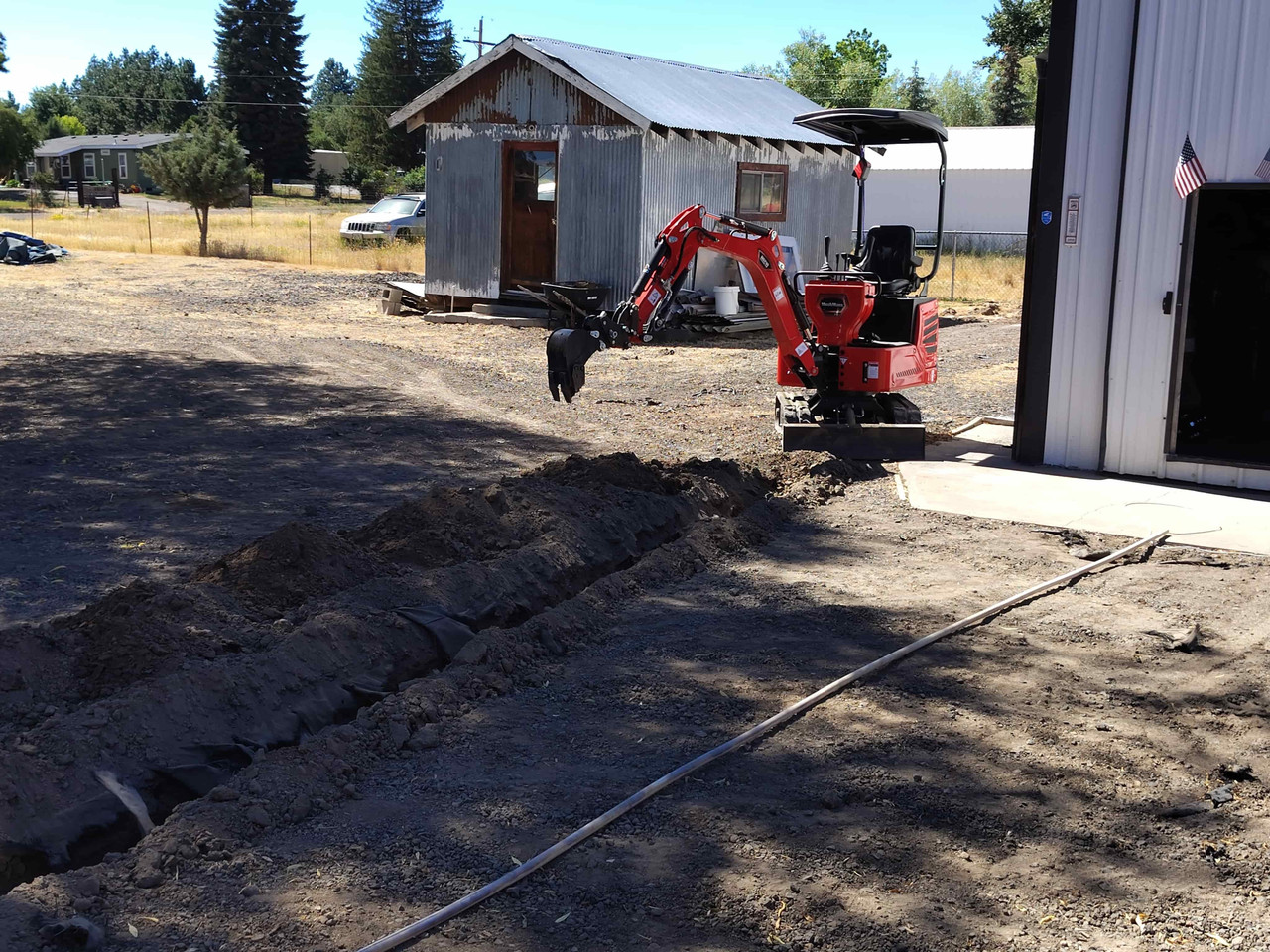

I used it to fig 200ft of trench for irrigation and it performed perfectly. The thumb was great when removing all of the rocks and roots as well. It made the job so much easier than digging by hand, built to handle heavy work. I will be digging drains next and expect it to do that with ease. A great machine for sure.
Not a single problem from order to delivery. Cut off the wrapping and drove it into the yard. Checked all bolts and fittings did not find anything loose or leaking. Installed a hydraulic thumb without issue. Would buy again.
This is a great machine! I really appreciate how easy it is to maintain. Shipping was quick and I have already made and saved money with this machine. Have done many projects on my 80 acres, building trails, feeding trees.
